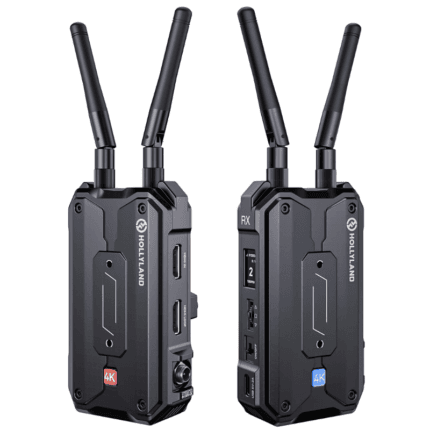

Hollyland Pyro S Wireless HDMI and SDI Video Transmission System, Auto Dual-Band Hopping, 4K30/1080p60 1300ft Los Range 50ms Latency, Smart Channel Scan, Up to 4 Receiver, UVC Live Stream (1TX+1RX)

Original price was: ₹64,990.00.Current price is: ₹41,899.00.

EMI starts at 1,452.44 - View Plans
Get GST Invoice and Save Upto 18%
8 Items sold in last 20 minutes
Please contact us directly if you have any doubt while ordering on 120-314-7871 or email us on support@utmaliyasales.in. Timing is 10:30 AM to 6:30 PM.
20 People watching this product now!
Description
Previous slide
Next slide
Previous slide
Next slide
Previous slide
Next slide
Previous slide
Next slide
Previous slide
Next slide
Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Hollyland Pyro S Wireless HDMI and SDI Video Transmission System, Auto Dual-Band Hopping, 4K30/1080p60 1300ft Los Range 50ms Latency, Smart Channel Scan, Up to 4 Receiver, UVC Live Stream (1TX+1RX)”

Your email address will not be published. Required fields are marked *

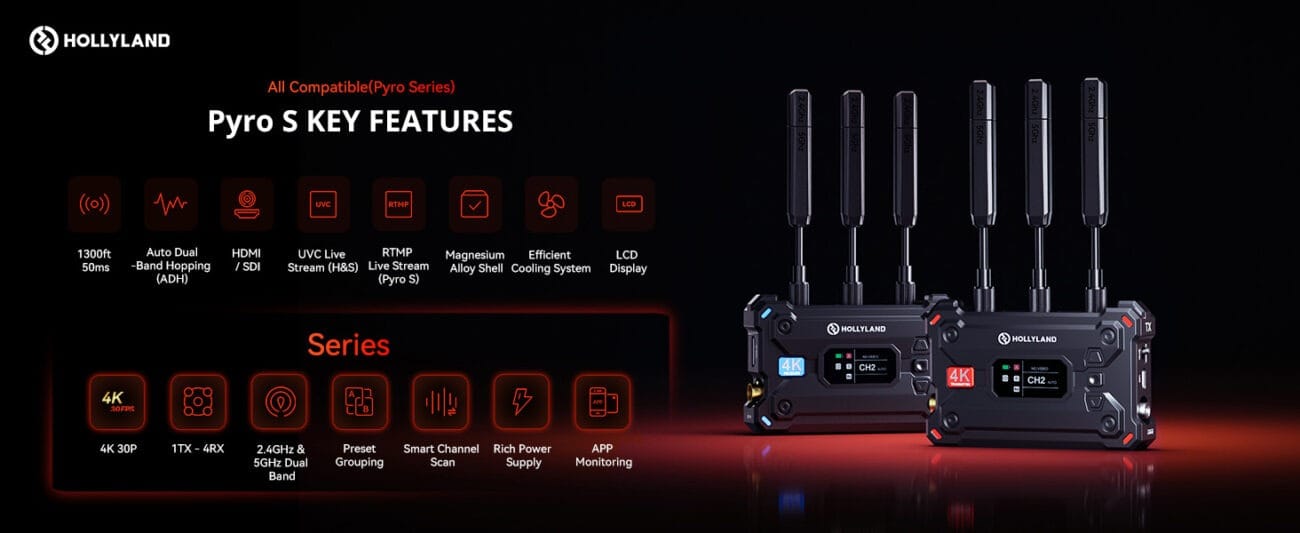

Key Features

KEY FEATURES

  • 1 Transmitter & 4 Receivers (1TX & 1RX in box)
  • 1,300ft (400m)
LOS Range
  • 06s Low Latency
  • 4GHz & 5GHz Dual Band
  • Auto Frequency
Hopping
  • HDMI & SDI
  • Multiple Power Supply Options
  • UVC & RTMP Streaming
  • 4K30 Transmission
  • Ready Out of the Box



Specifications

Transmitter

ItemParameters
PortDC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
USB-C: USB 2.0
OTG Antenna: SMA Male
Power SupplyBattery Voltage Range: 6.8 - 8.4V
DC Voltage Range: 6 - 16V
Power Consumption< 11W
Net Weight207g
Dimensions L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output FormatHDMI Input

720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98SDI Input
1080p60/59.94/50
1080i60/59.94/50
1080p30/29.97/25/24/23.98
720p60/59.94/50
1080psf23.98/24 1080psf25/29.97/30
Operating Frequency5 GHz Frequency Band
5.150 - 5.250 GHz
5.250 - 5.350 GHz
5.470 - 5.725 GHz
5.725 - 5.850 GHz2.4 GHz Frequency Band
2.412 - 2.484 GHz
Transmit Power< 23 dBm
Receiver Sensitivity/
Latencyas low as 50ms
Bandwidth20 MHz (Broadcast: 40 MHz)
Working Temperature-10 - 45℃ (working)
-40 - 60℃ (storage)

Receiver

ItemParameters
PortDC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power SupplyBattery Voltage Range: 6.8 - 8.4V
DC Voltage Range: 6 - 16V
Power Consumption< 8W
Net Weight207g
Dimensions L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output FormatHDMI Input

720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98SDI Input
1080p60/59.94/50
1080i60/59.94/50
1080p30/29.97/25/24/23.98
720p60/59.94/50
1080i50/59.94/60
Operating Frequency5 GHz Frequency Band
5.150 - 5.250 GHz
5.250 - 5.350 GHz
5.470 - 5.725 GHz
5.725 - 5.850 GHz2.4 GHz Frequency Band
2.412 - 2.484 GHz
Transmit Power/
Receiver Sensitivity-85 dBm (Broadcast: -80 dBm)
Latencyas low as 50ms
Bandwidth20 MHz (Broadcast: 40 MHz)
Working Temperature-10 - 45℃ (working)
-40 - 60℃ (storage)
